Solar Panel Starter Kit 200W 12V Poly Solar RV Kits, 30A MPPT Charge Controller

Solar Panel Starter Kit 200W 12V  Poly Solar RV Kits, 30A MPPT Charge Controller

Solar Panel Starter Kit 200W 12V Poly Solar RV Kits, 30A MPPT Charge Controller


RV Solar Kits are carefully arranged to meet your RV needs. Offers many benefits for homes, RVs, trailers, boats, sheds and cabins, Incorporating a small off-grid power system can give you greater travel independence and potential power cost savings.

Taking a trip in your RV can create lifetime memories. Don't let traditional gas powered generators or power hookups slow you down. This 200 Watt 12 Poly Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup.

  •  200W solar starter panel kit is fully equipped, and the necessary accessories from input to output are covered in it, which is ideal for novice and customers who are looking for convenience. This solar kit includes 2pcs 100W poly solar panel, 30A charge controller, 2 sets mounting z bracket, 30ft 12AWG PV cable, 8ft 8AWG tray cable, cable entry housing, 1Y2 branch connector.
  • Works great in permanent installation too. Advanced laminated technology and long-lasting ETFE material of 100W polycrystalline solar panel supports high light transmittance, scratch-resistant and easy to clean. And anti-reflection tempered glass and corrosion-resistant aluminum frame reinforces safety and impact resistance, which allows each panel to withstand high wind (2400Pa) and snow loads (5400Pa). Solar panel for homes is perfect for permanent or semi permanent installation.
  • Monitor & Protect Devices 30A MPPT uses maximum power point tracking technology and automatically regulates charging profiles relative to ambient temperatures, providing the best level of charge in any condition and protecting against over-charge, over-discharge, overload, and short circuit. User programmable for battery types, load control etc, via PC software or remote meter MT-50.
  • Wide Application & Compatible Solar panel kit is designed for RV, cabin, rooftop, caravan, shed, greenhouse, boat, back-up and remote power use, which can be connected in parallel for 12V battery charging or in series for 24V battery charging. And compatible with lead acid, AGM, gel, and lithium batteries. 30A MPPT of 200 Watts RV kit allows expansion to 780W in series and 390W in parallel.
  • [25-year Power Output Warranty] We offer a 25-year transferable power output warranty on solar panels and 1-year warranty on rest of the kit components. ACOPOWER solar panels are factory-automated production without manual participation, so the probability of damage is low. If the panel you received is damaged due to transportation, please contact us as soon as possible.


  • Easy installation:With pre-drilled holes; each solar panel comes with 12AWG cable with MC4 male/female quick connectors
  • Hight Efficiency: 2PCS Polycrystalline solar cell efficiency: 14.35%; 30A MPPT charge controller peak efficiency: 99.5%
  • MPPT Technology: Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries
  • Safe Operation:The ACOPower is equipped with multiple electronic protections; overcharge, overload, short-circuit and reverse polarity protections.
  • Reliable Performance:Electroluminescence tested solar modules for quality assurance.Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.Corrosion-resistant aluminum frame for extended outdoor use.TPT back sheet dissipates excess heat, ensuring smooth output
  • Warranty: 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
  • Green Solar System: Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging

ACOPOWER 200W Solar Panel Kit | 30A MPPT Charge Controller

This 200W Solar Kit is designed with an off-grid in mind. Suitable to mount on RVs, green homes, cars, and boats.

Packing List
  • Solar Module: 2PCS 100W Polycrystalline
  • MPPT Charge Controller: 30A MPPT

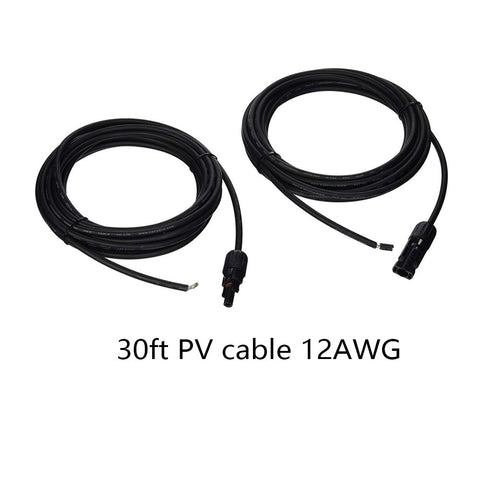

  • Cables: 1 pair 30ft 12AWG cable with female/male connector to connect to the charge controller, 1pair 8FT 8AWG Tray Cable to connect the charge controller to your battery;

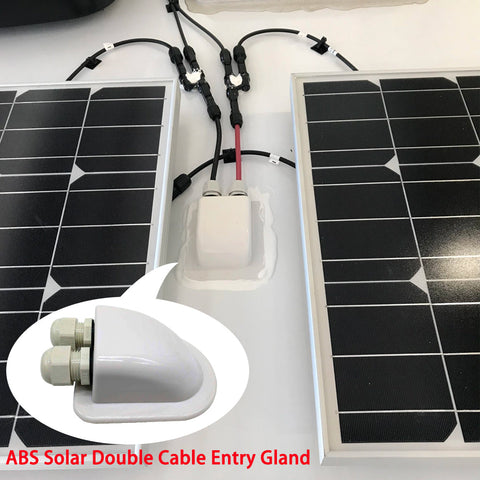

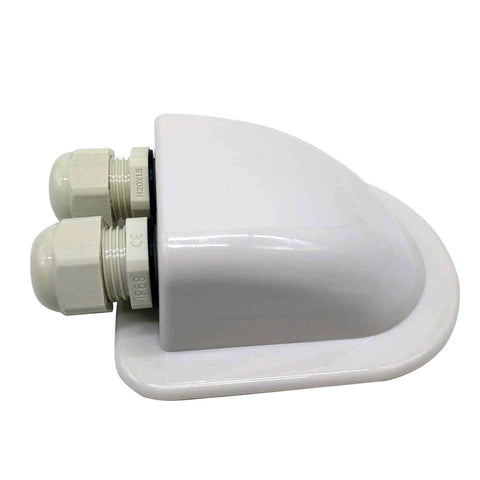

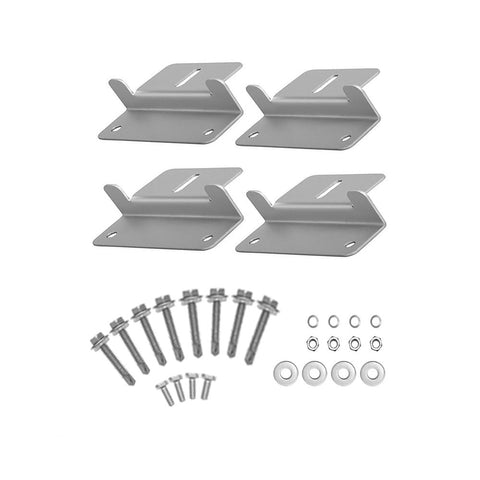

  • Mounts and cable Entry housing: Two set of z-brackets and a waterproof cable Entry housing

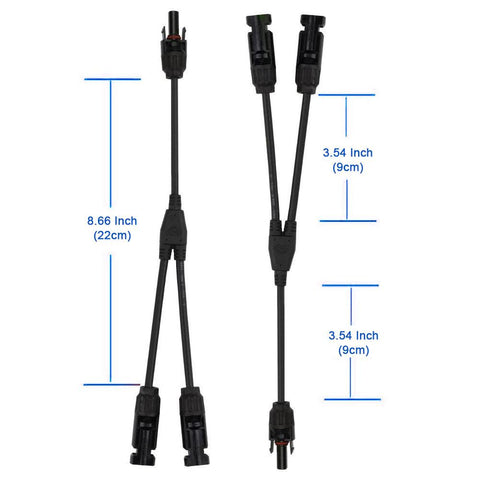

  • 1 Pair PV T/Y Connectors

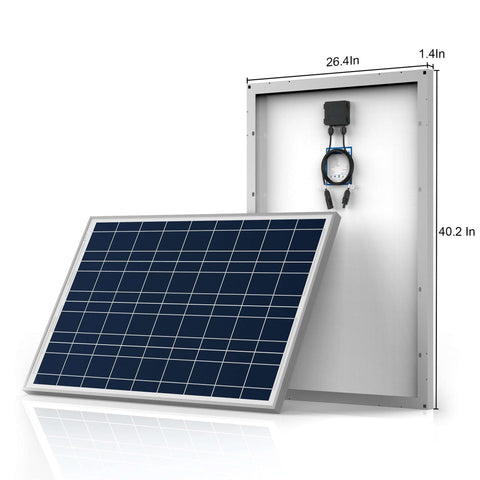

100W Single Solar Panel

  • Peak Power (Pmax):100W
  • Peak Circuit Voltage(Voc):22V
  • Max Power Voltage(Vmp):17.48V
  • Short Circuit Current(Isc): 6.21A
  • Max Power Current(Imp):5.72A
  • Dimension: 40.2*26.4*1.4 Inch
  • Weight: 17.6 lb
  • Wind resistance:2400pa

30A MPPT Charge Controller

  1. System nominal voltage: 12/24VDC automatically identifying system voltage except the lithium-ion battery.
  2. Battery voltage range: 8~32V
  3. Rated charge current: 30A
  4. Max. PV open circuit voltage: 100V at At minimum operating environment temperature /92V at 25℃ environment temperature
  5. Max Input Power: 390W/12V , 780W/24V
  6. Battery type selection: lead-acid (Gel, Sealed, Flooded) and Lithium
  7. Negative Grounding Design
  8. MPP voltage range: (Battery voltage +2V)~72V
  9. Installion Notes: First connect the battery;Then connect the load; Finally connect the solar panel.

How to properly set up a basic system

First, the battery should be hooked up to the charge controller. You could use our tray cable or any general stranded copper core wire to connect the two. Make sure that you lead the wire into the battery terminal of the charge controller and match the + and – to the battery + and -. Make sure to screw in the exposed wire tightly inside the controller terminal. Then screw on the battery rings to the battery.

Second, then connect your solar panel to your charge controller. We recommend that you connect the adapter kit to your panel first, then follow the + or – sign coming off of the leads of the panels and match it with the + and – sign on the charge controller. Be careful at this step, because if the panel is inserted incorrectly, you can have reverse polarity and short the system causing damage to the panels or controllers.

Lastly, you can hook up your inverter to your battery by using battery ring cables and by matching the + to + and – to -.

Processing time
2 - 4 business days
Normally we use Fedex, UPS and USPS ground shipping.
Not available to Alaska or Hawaii

Estimated delivery time
4 - 8 business days to United States

Brought to you by
Thanks for shopping with us!


Regular price $ 0.00 Sale price $ 369.00
