440Watts Flexible Solar RV Kit W/ 40A Waterproof Charge Controller

440Watts Flexible Solar Kit W/ 40A Waterproof Charge Controller

Flexible and Portable Panel : The thin solar film can be gently flexed to follow a smooth curve of 27 degrees max on a coach roof, RV, boat, caravan, cabin, tent, golf cart etc. Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations ;Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels) ;Can be installed without costly structural roof reinforcements.

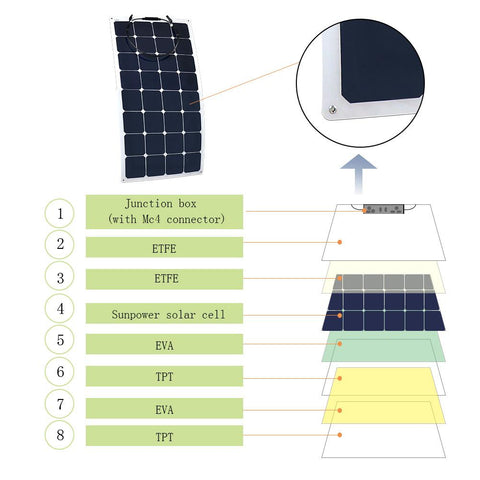

Powerful And Durable : Made from monocrystalline pv cells , the most efficient solar cells provider in the world. 21.5%-24% Higher-than-average Module Conversion Efficiency. ETFE Design longer life time of 15 years and is Scratches-protected and weather resistant.
MPPT Charge Controller: Advanced Charge Control Technology (MPPT) with high tracking efficiency no less than 99.50%; peak conversion efficiency of 98%; Ultra-fast tracking speed; accurately recognizing and tracking of multiple power point; 3-stage charge;Common negative
grounding design.

Easy Monitor and Operate: Multi-function LCD displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50

25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components

Kit includes:

4PCS 110 Watt 12 Volt Flexible Solar Panel
40A MPPT Charge Controller
30ft 10AWG MC4 Adaptor Kit
8ft 10AWG Tray Cable

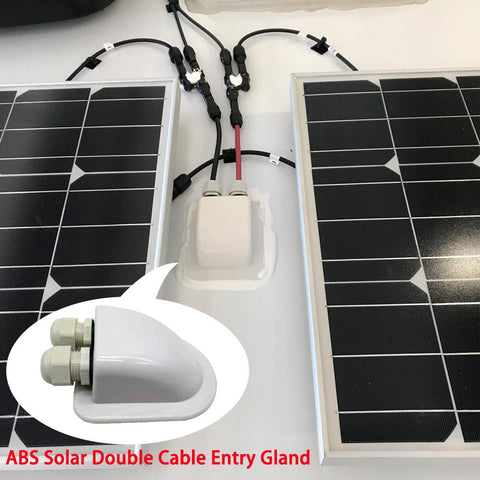

Cable Entry Housing

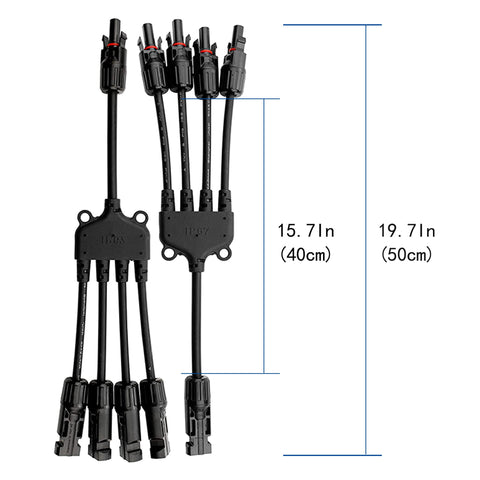

1 Pair 1Y4 Branch Connector:1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)

It is compatible with solar connectors in 10AWG to 12AWG

SPECIFICATIONS

110W FLEXIBLE SOLAR PANEL
Maximum Power at STC (Pmax): 110W	Open-Circuit Voltage (Voc): 20.8V
Maximum Operating Voltage (Vmp): 17.6V	Short-Circuit Current (Isc): 6.9A
Maximum Operating Current (Imp): 6.25A	Operating Temperature: -20ºC to 65ºC
Dimension: 1070x540x3mm / 44.7x21.3x0.12 in	Weight: 2.2kg / 4.85 lbs

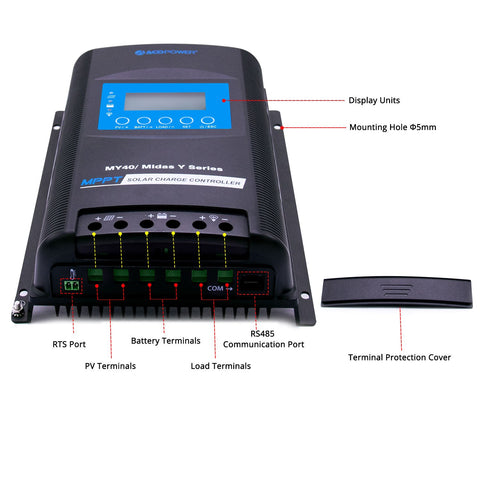

MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
Nominal System Voltage: 12/24VDC Auto	Grounding: Common negative
Rated Charge Current: 40A	Battery Input Voltage Range: 8V～32V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)	Rated charge Power: 520W/12V 1040W/24V
MPPT Voltage Range: (Battery Voltage+2V) ~72V	RS485 Interface: 5VDC/200mA(RJ45)
Working temperature: -25℃～+50℃	Storage temperature: -20℃～+70℃
Terminals: Up to 6 AWG	Enclosure: IP33

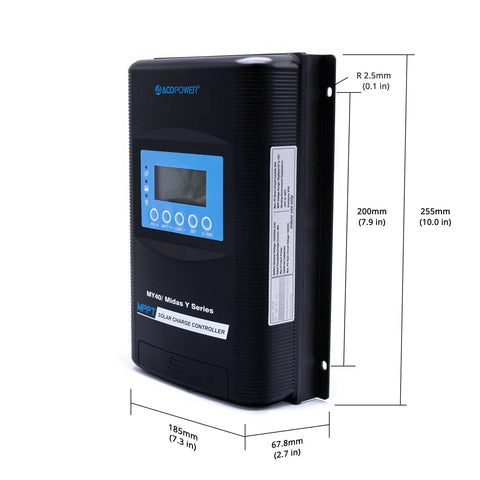

Dimension: 10x7.28x2.67 in / 255×185×67.8mm	Weight: 3.75lbs / 1.7kg

WARRANTY INFORMATION

Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.

Solar Charge Controllers: The controller itself comes with a 1-year warranty.

Accessories: 1-year material warranty
